Standard Pneumatic (Air) Cylinder - ISO 6431 VDMA 24562 - Pneumatic Actuator

ISO STANDARD AIR CYLINDERS
C1 SERIES ISO 6431 VDMA 24562

AZ Pneumatics Standard Pneumatic Air Cylinder ISO 6431 - Brisbane & Australia

Pneumatic Cylinder ISO 6431
Click to view PDF version of this (194kb)

Robust General Purpose Air Cylinder

AZ Pneumatics air cylinders, distributed in Australia by Universal Fluid Power. Noticeably low friction (obvious when you extend the piston rod by hand) due to high quality polyurethane and NBR seals. (Viton seals supplied on request). Pneumatic adjustable cushions. All pistons magnetic as standard. The barrel is provided with grooves to allow direct mounting of optional reed switches without the need to remove end caps. Complete range of cylinder mountings and accessories available. All parts individually replaceable.

Fast delivery nationwide to all major cities and regional areas in Australia including Brisbane, Sydney, Melbourne, Adelaide, Hobart, Darwin, Perth & Canberra.

Scroll down for dimensions and spare parts view.

C1 SERIES CYLINDERS TECHNICAL DATA
CYLINDER MATERIALS
Barrel Piston Rod Covers Piston Seals Bush Magnet		Anodised aluminium C45 hard chromium plated steel Aluminium Aluminium Polyurethane + NBR Acetal Magnetic Iron Compund
CYLINDER OPERATION
Medium Working Pressure Temperature		Compressed air, with or without lubrication. Max 10 bar NBR: max + 60°C Viton: max + 110°C
STANDARD CYLINDER BORE SIZES (mm)
32, 40, 50, 63, 80, 100, 125, 160, 200
STANDARD CYLINDER STROKES (mm)
25, 50, 75, 80, 100, 125, 150, 160, 200, 250, 300, 320, 350, 400, 450, 500,550, 600, 650, 700, 750, 800, 850, 900, 950, 1000.
SPECIAL CYLINDER STROKES
Manufactured to order up to 3000mm.
STANDARD CYLINDER MODELS
100 101 200 201 260 270	D.A. Stainless Steel Rod D.A. Stainless Steel Through Rod D.A. Hard Chrome Plated Rod D.A. Hard Chrome Plated Through Rod S.A. Hard Chrome Plated Retracted Rod S.A. Hard Chrome Plated Extended Rod
CYLINDER OPTIONS
Viton Seals - add a 'V' Extended Piston Rod - see CS Series Magnetic - (supplied standard) add an 'M' Reed Switch - Part No. RS3-A
ORDER INFORMATION

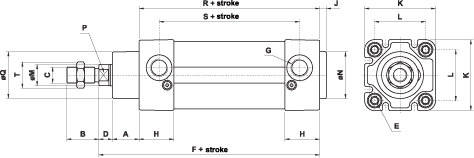

Dimensions for C1200 Bore 32-125 ISO 6431 Standard Pneumatic Cylinder

DWG	ø	A	B	C	D	E	F	G	H	J	K	L	M	N	P	Q	R	S	T
	32	16	22	M10x1.25	10	M6	120	G1/8"	25.5	5	47	32.5	12	30	10A/F	30	94	63.6	17A/F
	40	20	24	M12x1.25	10	M6	135	G1/4"	28	5	53	38	16	35	13A/F	35	105	75	19A/F
	50	25	32	M16x1.5	12	M8	143	G1/4"	30	5	64	46.5	20	40	17A/F	40	106	69.4	24A/F
	63	25	32	M16x1.5	12	M8	158	G3/8"	31	5	74	56.5	20	45	17A/F	45	121	85.2	24A/F
	80	32.5	40	M20x1.5	13.5	M10	174	G3/8"	34	5	94	72	25	45	22A/F	45	128	90	30A/F
	100	35	40	M20x1.5	16	M10	189	G1/2"	35	5	112	89	25	55	22A/F	55	138	104	30A/F
	125	40	54	M27x2	25	M12	225	G1/2"	41	5	136	110	32	60	27A/F	60	160	112	41A/F

Note: Click CAD icons to download drawings

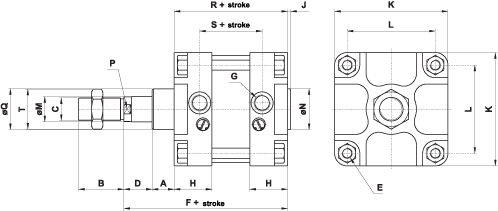

Dimensions for C1200 Bore 160-200 ISO 6431 Standard Pneumatic Cylinder

DWG	ø	A	B	C	D	E	F	G	H	J	K	L	M	N	P	Q	R	S	T
	160	35	72	M36X2	45	M16	260	G3/4"	60	5	180	140	40	65	36A/F	65	180	103	55A/F
	200	35	72	M36X2	60	M16	275	G3/4"	60	5	220	175	40	75	36A/F	75	180	106	55A/F

Note: CAD drawings not yet available for bore 160-200 - stay tuned

Spart Parts for Bore 32-125 ISO 6431 Standard Pneumatic Cylinder

C1 Series Pneumatic Cylinders - Bore 32-125 ISO 6431 (Cutaway Drawing)

1. Locknut - Steel
2. Retaining Ring
3. Rod Seal - NBR or Viton
4. Rod Bearing - Non Lube
5. Dust Seal - Nylon
6. Retainer - Cushion Screw
7. Cushion Screw
8. "O" Ring - NBR or Viton
9. Shock Absorber - Hytrel
10. Cushion Seal - NBR or Viton
11. Cushion Spear - Aluminium
12. Piston Seal - NBR or Viton

13. Piston Wear Strip - PTFE
14. Barrel Seal - NBR or Viton
15. Piston Retaining Nut - Steel
16. Piston Rod - Steel 1045 or SS AISI 304
17. Rod End Cover - Aluminium
18. Piston - Aluminium
19. Magnet
20. "O" Ring - NBR or Viton
21. Cover Bolt - Steel
22. Head End Cover - Aluminium
23. Barrel - Anodised Aluminium

Spare Parts for Bore 160-200 ISO 6431 Standard Pneumatic Cylinder

C1 Series Pneumatic Cylinders - Bore 160-200 ISO 6431 (Cutaway Drawing)

1. Locknut - Steel
2. Retaining Ring
3. Rod Seal NBR or Viton
4. Rod Bearing - Non Lube
5. Barrel Seal - NBR or Viton
6. Cushion Spear - Aluminium
7. Piston Seal - NBR or Viton
8. Piston Wear Strip - PTFE
9. Retainer - Cushion Screw
10. Cushion Screw
11. "O" Ring - NBR or Viton
12. Piston Retaining Nut - Steel

13. Head End Cover - Aluminium
14. Tie Rod Nut - Steel
15. "O" Ring - NBR or Viton
16. Piston - Aluminium
17. Magnet
18. Tie Rod - AISI 304
19. Cushion Seal - NBR or Viton
20. Rod End Cover - Aluminium
21. Piston Rod - Steel 1045 or SS AISI 304
22. Barrel - Anodised Aluminium

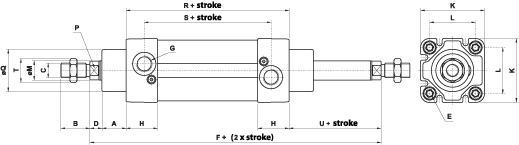

Dimensions for C1201 Bore 32-125 ISO 6431 Pneumatic Cylinder with Through Rod

ISO 6431 Pneumatic Cylinder with Through Rod

DWG	ø	A	B	C	D	E	F	G	H	K	L	M	P	Q	R	S	T	U
	32	16	22	M10x1.25	10	M6	146	G1/8"	25.5	47	32.5	12	10A/F	30	94	63.6	17A/F	26
	40	20	24	M12x1.25	10	M6	165	G1/4"	28	53	38	16	13A/F	35	105	75	19A/F	30
	50	25	32	M16x1.5	12	M8	180	G1/4"	30	64	46.5	20	17A/F	40	106	69.4	24A/F	37
	63	25	32	M16x1.5	12	M8	195	G3/8"	31	74	56.5	20	17A/F	45	121	85.2	24A/F	37
	80	32.5	40	M20x1.5	13.5	M10	220	G3/8"	34	94	72	25	22A/F	45	128	90	30A/F	46
	100	35	40	M20x1.5	16	M10	240	G1/2"	35	112	89	25	22A/F	55	138	104	30A/F	51
	125	40	54	M27x2	25	M12	290	G1/2"	41	136	110	32	27A/F	60	160	112	41A/F	65
	Adobe Acrobat PDF for C1201 pneumatic cylinder dimensions as shown above (37kb)

Note: Click CAD icons to download drawings
