AIR PREPARATION UNITS

Filter Regulator + Lubricator

FR+L 3-08-30-S
Combination Filter/Regulator +
Lubricator G 3/8


3/8 port size : Air Preparation : Filter / Regulator + Lubricator : Az Pneumatica

This pneumatic air preparation unit includes combined filter, regulator and oil mist lubricator. National distribution to all capital cities including Sydney, Brisbane, Melbourne, Adelaide, Hobart, Perth, Darwin and regional areas in Australia. Solid, robust manufacture by AZ Pneumatics, distributed in Australia by Universal Fluid Power.

Scroll down for dimensions, flow diagram and CAD drawing download.


Click to Email Us...



TECHNICAL DATA FR+L

MATERIALS

Body
Die cast alumimium
Seals NBR
Springs Stainless Steel
Internal Parts Brass & Stainless Steel
Bowls Reinforced polycarbonate

OPERATION

Moisture separation
90%.
Drain Semi-automatic moisture drain; manual oil refilling
Bowl Capacity 22 cm³ (moisture), 45 cm³ (oil)
SPECIFICATIONS
Ports G 3/8
Weight 0.75 kg
Inlet pressure range 0-16 bar
Outlet pressure 0.5-8 bar
Recommended flow rate 680 Nl/min
Filter Element 30 µm


OPTIONS

Vertical mounting bracket (STF3) and
gauge (PG-M40) are available separately.

Metal bowl protection on request (PR 3-00)

ORDER INFORMATION

FR+L 3-08-30-S
FR+L 3-08-30-SA
Assembly includes gauge & bracket. (Equivalent to Wilkerson D18-C3-FKG0)

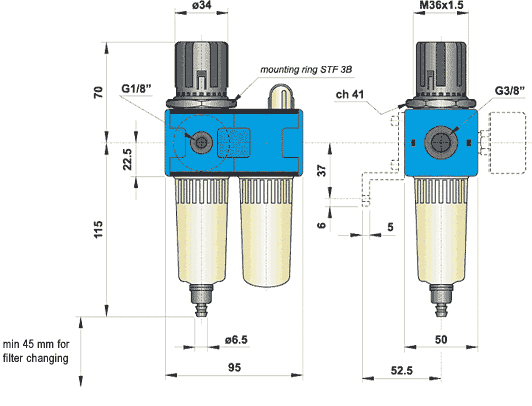

Dimensions for FR+L 3-08-30-S



3/8 port size : Combination Filter / Regulator + Lubricator : Drawing : Dimensions
Flow Diagram for FR+L 3-08-30-S


flow diagram for 3/8 port size filter reg lube combo
