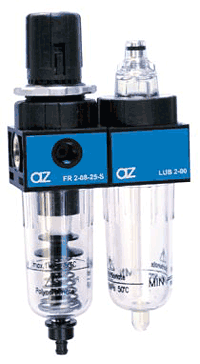

FR+L 2-08-25-S
Combination Filter/Regulator +
Lubricator G 1/4
This pneumatic air preparation unit includes combined Filter/ Regulator and oil mist Lubricator. Solid, robust manufacture by AZ Pneumatics, distributed in Australia by Universal Fluid Power. National distribution to all capital cities including Sydney, Brisbane, Melbourne, Adelaide, Hobart, Perth, Darwin and regional areas in Australia.
Scroll down for dimensions and flow diagram.
|
| TECHNICAL DATA FR+L |
MATERIALS |
Body
|
Reinforced polymer with brass thread inserts |
| Seals |
NBR |
| Springs |
Stainless Steel |
| Internal Parts |
Brass, Stainless Steel & polymer |
| Bowls |
Reinforced polycarbonate |
OPERATION |
Moisture separation
|
90%. |
| Drain |
Semi-automatic moisture drain; manual oil refilling |
| Bowl Capacity |
12 cm³ (moisture), 35 cm³ (oil) |
| SPECIFICATIONS |
| Ports |
G 1/4 |
| Weight |
0.32 kg |
| Inlet pressure range |
0-10 bar |
| Outlet pressure |
0.5-8 bar |
| Recommended flow rate |
550 Nl/min |
| Filter Element |
25 µm |
| |
|
OPTIONS |
Vertical mounting bracket (STF2) and
gauge (PG-M40) are available separately.
Plastic bowl protection on request (PR 2-00)
|
ORDER INFORMATION |
| FR+L 2-08-25-S Standard unit
FR+L 2-08-25-SA ( includes gauge & bracket.)
|
|
