CM SERIES

Pneumatic Cylinder Mountings

TO SUIT C1 ISO 6431 / VDMA 24562
Pneumatic Cylinder Mounting - Flange Front / Rear - CM-12

CM-12***

Flange Front / Rear

Flange Front / Rear pneumatic cylinder mounting to suit our C1 series pneumatic cylinders. Solid, robust manufacture by AZ Pneumatics, distributed in Australia by Universal Fluid Power.


Click to view (40kb)

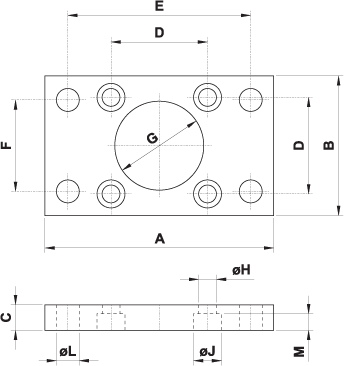

Pneumatic Cylinder Mounting - Flange Front / Rear - CM-12 (Drawing)



DWG

ORDER
CODE

BORE

A

B

C

D

E

F

G

H

J

L

M
CM-12032 32 80 50 10 32.5 64 32 30 7 11 7 6.5
CM-12040 40 90 55 10 38 72 36 35 7 11 9 6.5
CM-12050 50 110 65 12 46.5 90 45 40 9 15 9 8.5
CM-12063 63 120 75 12 56.5 100 50 45 9 15 9 8.5
CM-12080 80 150 95 15 72 126 63 45 11 18 12 10.5
CM-12100 100 178 115 15 89 150 75 55 11 18 14 10.5
CM-12125 125 220 140 20 110 180 90 60 13 20 16 12.5
CM-12160 160 270 180 20 140 230 115 65 17 25 18 17
CM-12200 200 312 225 25 175 270 135 75 17 25 22 17
